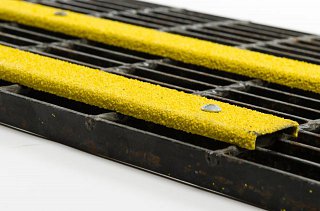

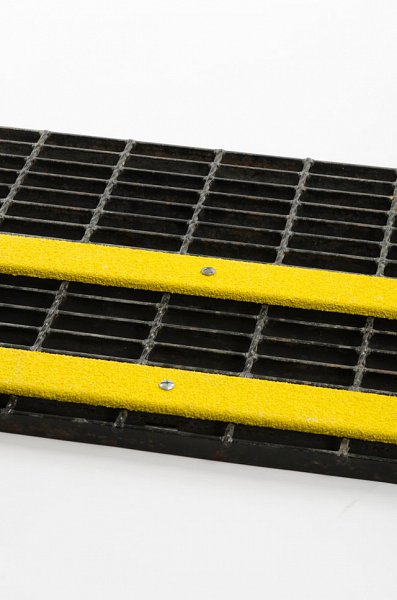

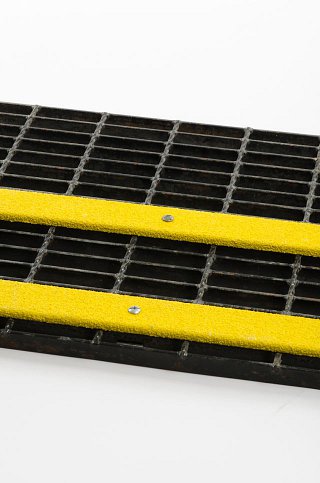

Anti-Slip Conveyor Channel

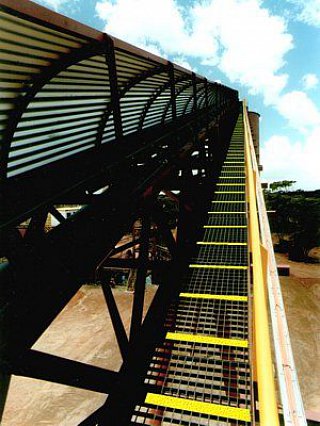

These are specially fabricated Anti-Slip channels to a 10mm high profile. They are designed to provide maximum non-slip properties under foot on conveyor walkways with steep inclines.

Features

  • Bright safety yellow non-slip coating makes all walkways highly visible
  • The Anti-Slip properties overcomes the problem of wet, oily surfaces
  • High impact resistance
  • Chemical and UV resistance - see our test results
  • Custom manufactured to your specification of size and non-slip grade
  • Simple DIY installation
  • Alternative to the 10 x 10mm square cleat
  • Durable Galvabond, Stainless Steel 316 or Aluminium backing
  • AS/NZS Certified
  • Covered by Ceramabond’s 10 year warranty

Options

  • Available on Galvabond, Stainless Steel 316 and Aluminium backing
  • Available in Commercial, Industrial and Offshore, Slip-Resistance grades
  • Available in Ceramabond X-Treme for use in extreme conditions i.e. Marine, splash zone, tropical, wet or exposed to chemical contamination
  • Available in a range of colours
  • We can custom manufacture to your specification

Try our enquiry check sheet - ENQUIRY CHECK SHEET

Standard sizes are:-

Code Size (mm)
CBV1 50 x 580
CBV2 50 x 730
CBV3 50 x 880
CBV4 50 x 1030
CBV5 50 x 1180
