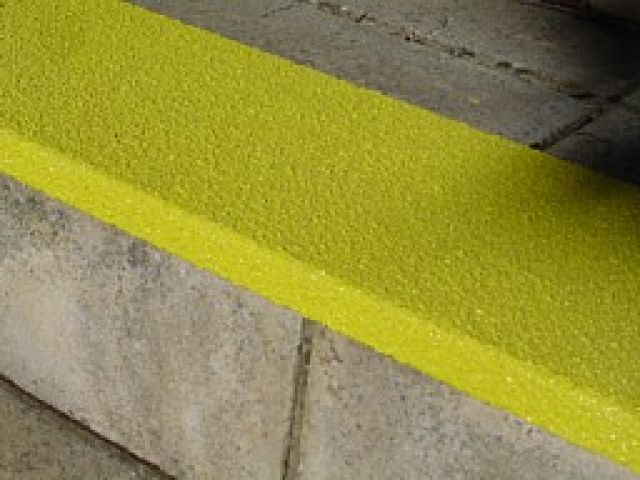

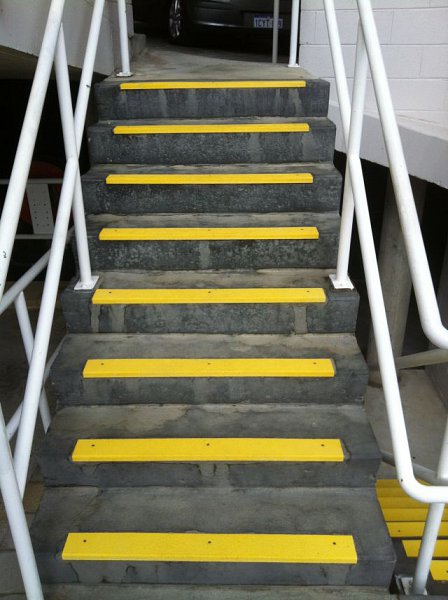

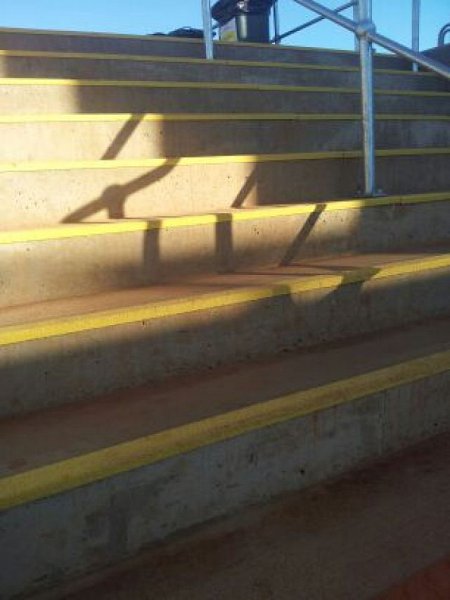

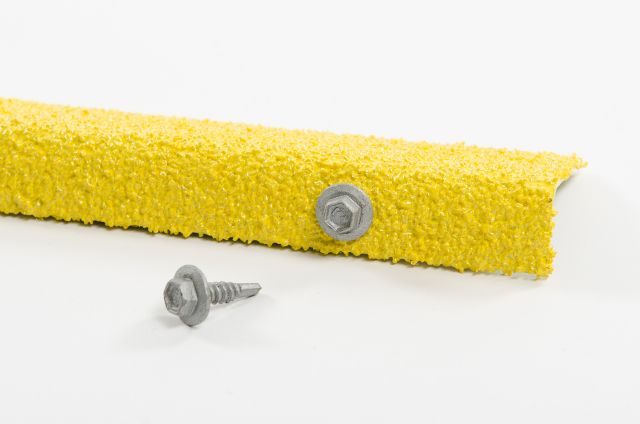

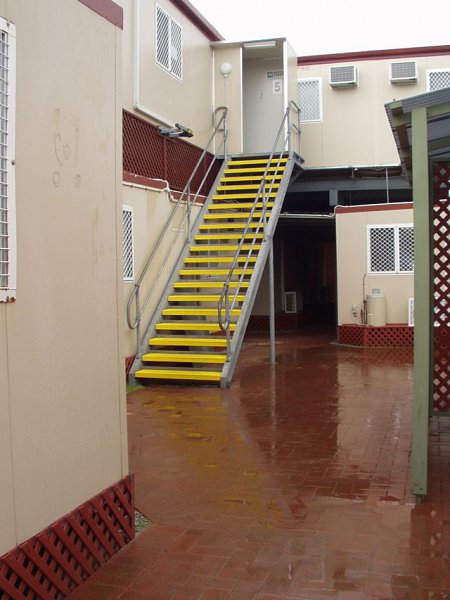

Ceramabond Pty Ltd offers a large range of high quality Anti-Slip stair tread nosing’s that are designed to cover all slippery, worn or broken step surfaces and provides prevention against slip, trip and fall accidents, increasing stair safety.
Features
- Suitable for all stair surfaces (Metal, Concrete, Masonry, Timber)

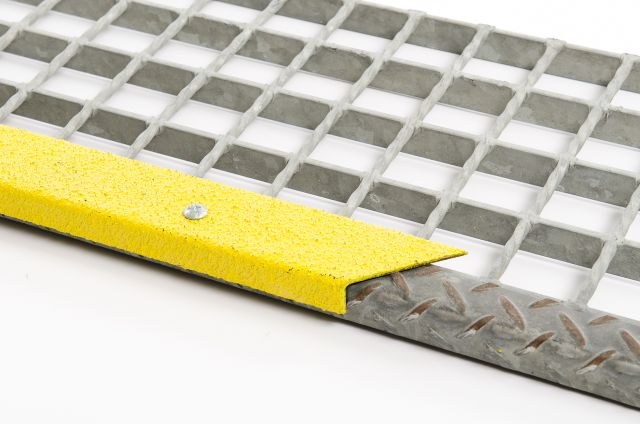

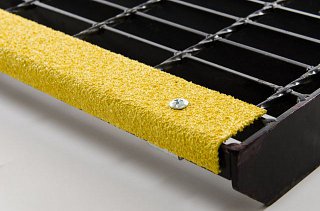

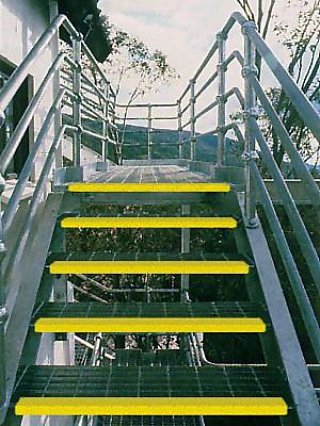

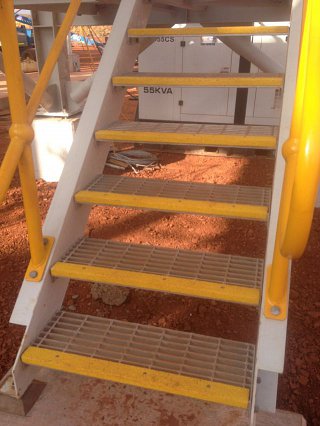

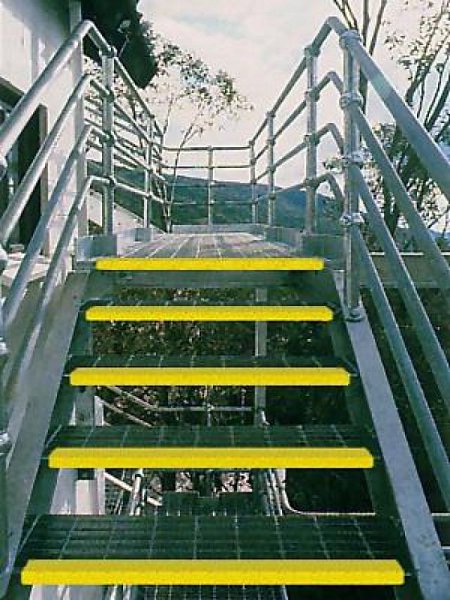

- Ideal for Checkerplate, Grating or Flat Plate steel stairs
- Bright safety yellow non-slip coating makes all steps highly visible
- The Anti-Slip properties overcomes the problem of wet, oily surfaces
- High impact resistance
- Chemical and UV resistance - see our test results
- Custom manufactured to your specification of size and non-slip grade
- Simple DIY installation (Pre-drilled if required to suit application)
- Durable Galvabond, Stainless Steel or Aluminium backing
- AS/NZS Certified
- Covered by Ceramabond’s 10 year warranty
Options
- Available on Galvabond, Stainless Steel 316 and Aluminium backing
- Available in Commercial, Industrial and Offshore, Slip-Resistance grades

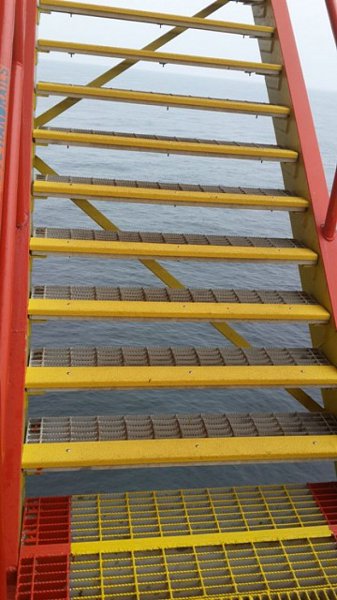

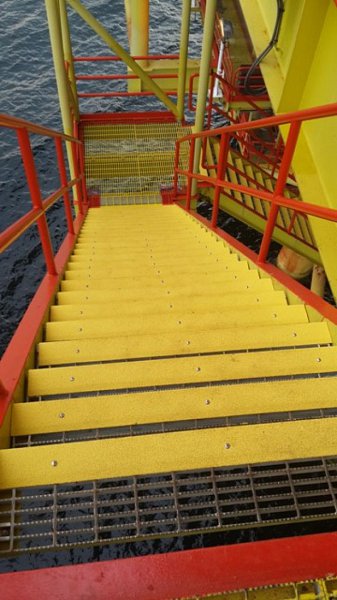

- Available in Ceramabond X-Treme for use in extreme conditions i.e. Marine, splash zone, tropical, wet or exposed to chemical contamination
- Available in a range of colours
- We can custom manufacture to your specification
Try our enquiry check sheet - ENQUIRY CHECK SHEET
Ceramabond custom makes to most size requirements as well as offering the following standard range;
Code | Depth x Drop x Width (mm) | Fixings |
---|---|---|
CB1 | 50 x 20 x 580 | 2 |
CB2 | 50 x 20 x 730 | 3 |
CB3 | 50 x 20 x 880 | 3 |
CB4 | 50 x 20 x 1030 | 3 |
CB5 | 50 x 20 x1180 | 3 |
CBN6 | 80 x 20 x 450 | 2 |
CBN7 | 80 x 20 x 600 | 2 |
CBN8 | 80 x 20 x 750 | 3 |
CBN9 | 80 x 20 x 900 | 3 |
CBN10 | 80 x 20 x 1200 | 3 |
CBN11 | 100 x 20 x 450 | 2 |
CBN12 | 100 x 20 x 600 | 2 |
CBN13 | 100 x 20 x 750 | 3 |
CBN14 | 100 x 20 x 900 | 3 |
CBN15 | 100 x 20 x 1200 | 3 |
CBN16 | 130 x 20 x 450 | 4 |
CBN17 | 130 x 20 x 600 | 4 |
CBN18 | 130 x 20 x 750 | 6 |
CBN19 | 130 x 20 x 900 | 6 |
CBN20 | 130 x 20 x 1200 | 6 |
CBN21 | 180 x 20 x 450 | 4 |
CBN22 | 180 x 20 x 600 | 4 |
CBN23 | 180 x 20 x 750 | 6 |
CBN24 | 180 x 20 x 900 | 6 |
CBN25 | 180 x 20 x 1200 | 6 |
CBN26 | 220 x 20 x 450 | 4 |
CBN27 | 220 x 20 x 600 | 4 |
CBN28 | 220 x 20 x 750 | 6 |
CBN29 | 220 x 20 x 900 | 6 |
CBN30 | 220 x 20 x 1200 | 6 |
Fixing Instructions
- If electing to drill own fixing holes, mark hole positions and drill through from the underside surface
- Make certain sufficient holes or adhesive is applied to anchor the nosing firmly to the base structure
- Where adhesive is used remove all loose matter, grease or rust from the step surface and clean with solvent before applying adhesive
- Choose correct fixings to suit the given structure - some options are shown below
Base Structure | Fixing Options |
---|---|
Concrete | Adhesive Masonry Screws |
Chequer/floor plate | Adhesive Tek Screws Rivets Bolt & Locknut Self Tapping Screws |
Timber | Adhesive Wood Screws |

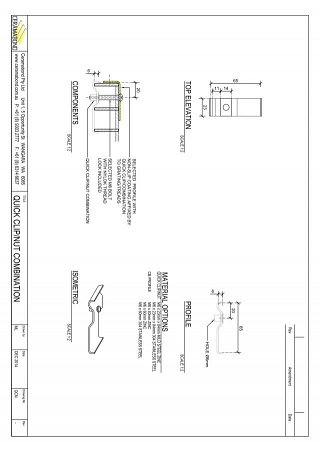

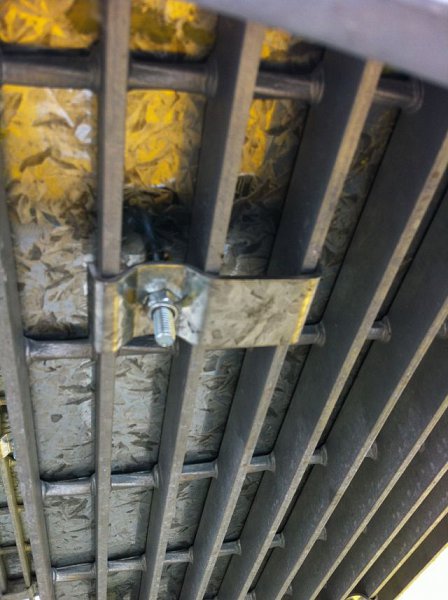

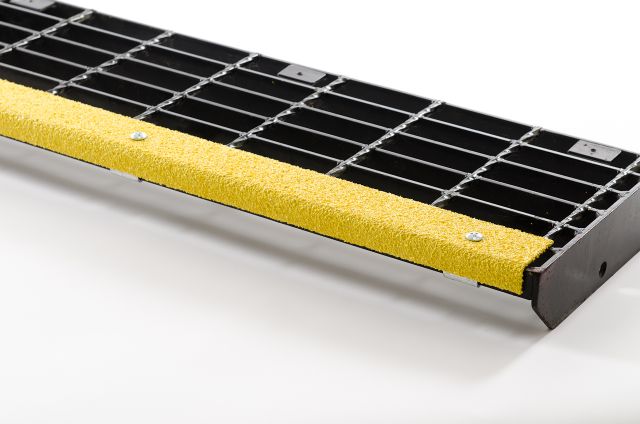

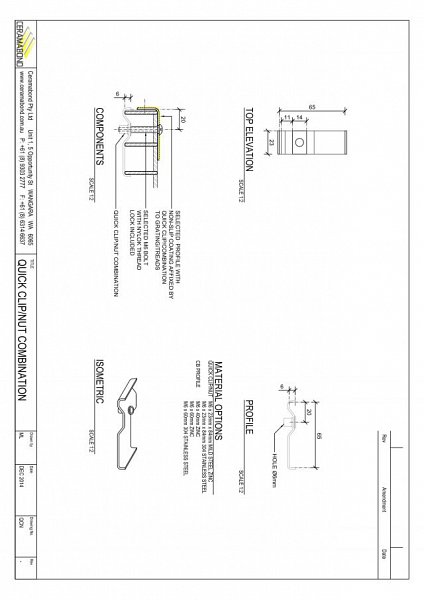

Grating & Expanded Mesh | Ceramabond Fastener |
