A range of Anti-Slip Metal Strips are manufactured as an alternative to full decking. Strips are particularly designed for use on conveyor walkways, however can suit many other locations such as slippery floors.
Features
- Bright safety yellow non-slip coating makes all areas highly visible
- The Anti-Slip properties overcomes the problem of wet, oily surfaces
- High impact resistance
- Chemical and UV resistance - see our test results
- Custom manufactured to your specification of size and non-slip grade
- Simple DIY installation
- Durable Galvabond, Stainless Steel 316 and Aluminium backing
- AS/NZS Certified
- Covered by Ceramabond’s 10 year warranty
Options
- Available on Galvabond, Stainless Steel 316 and Aluminium backing
- Available in Commercial, Industrial and Offshore, Slip-Resistance grades
- Available in Ceramabond X-Treme for use in extreme conditions i.e. Marine, splash zone, tropical, wet or exposed to chemical contamination
- Available in a range of colours
Try our enquiry check sheet - ENQUIRY CHECK SHEET
Metal strips are custom made to most depths and widths
Standard Sizes are;
Code | Size (mm) | Fixing Holes |
---|---|---|
CBS1 | 50 x 580 | 2 |
CBS2 | 50 x 730 | 3 |
CBS3 | 50 x 880 | 3 |
CBS4 | 50 x 1030 | 3 |
CBS5 | 50 x 1180 | 3 |
CBS6 | 100 x 580 | 2 |
CBS7 | 100 x 730 | 3 |
CBS8 | 100 x 880 | 3 |
CBS9 | 100 x 1030 | 3 |
CBS10 | 100 x 1180 | 3 |

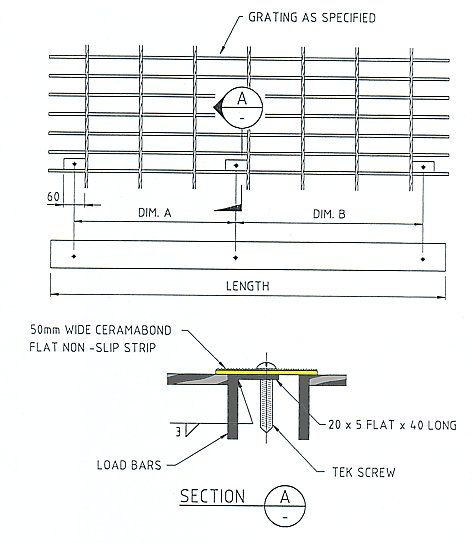

Fixing Instructions for Metal Strips
- Fix through pre-drilled holes or drill through from the underside surface, then fix
- Choose correct fixing to suit the given structure. Some options are shown below
Base Structure | Fixing Options |
---|---|
Concrete | Adhesive Masonry Screws |
Chequer/floor plate | Adhesive Tek Screws Rivets Bolt & Locknut Self Tapping Screws |
Timber | Adhesive Wood Screws |
